High Availability (VMware and AWS)

Description

In this lab, we will configure High Availability for BIG-IQ CM. Refer to below AskF5 link if you need further details.

AskF5 Reference

Step 1: High Availability

For the high availability pair to synchronize properly, each system must be running the same BIG-IQ version, and the clocks on each system must be synchronized to within 60 seconds.

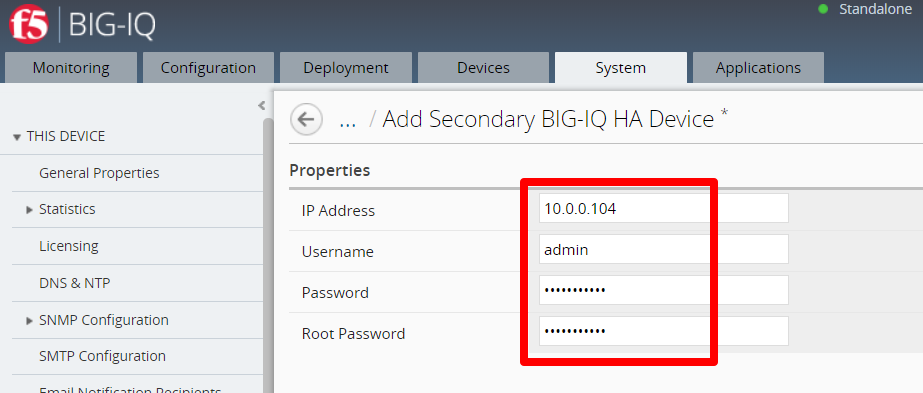

  1. Click System > BIG-IQ HA > Add Secondary and enter in the secondary device connectivity information

    lab-1-1

    • Use self-ip of peer BIG-IQ
    • Enter in root password that you configured in the setup wizard (required)

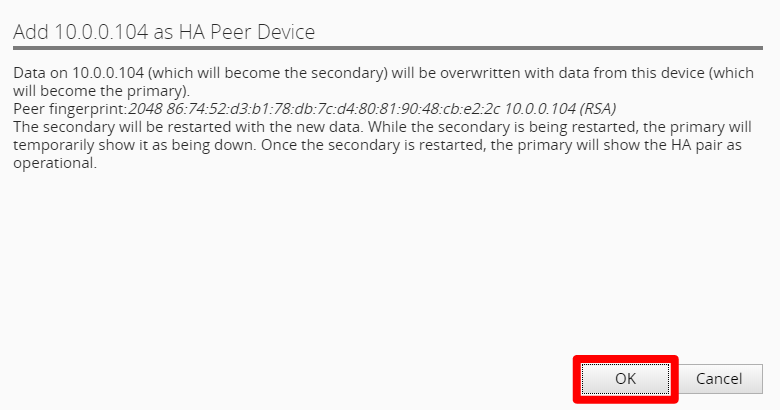

  2. Click OK to add the HA Peer Device

    lab-1-2

This completes the BIG-IQ High Availability configuration.
